Overview

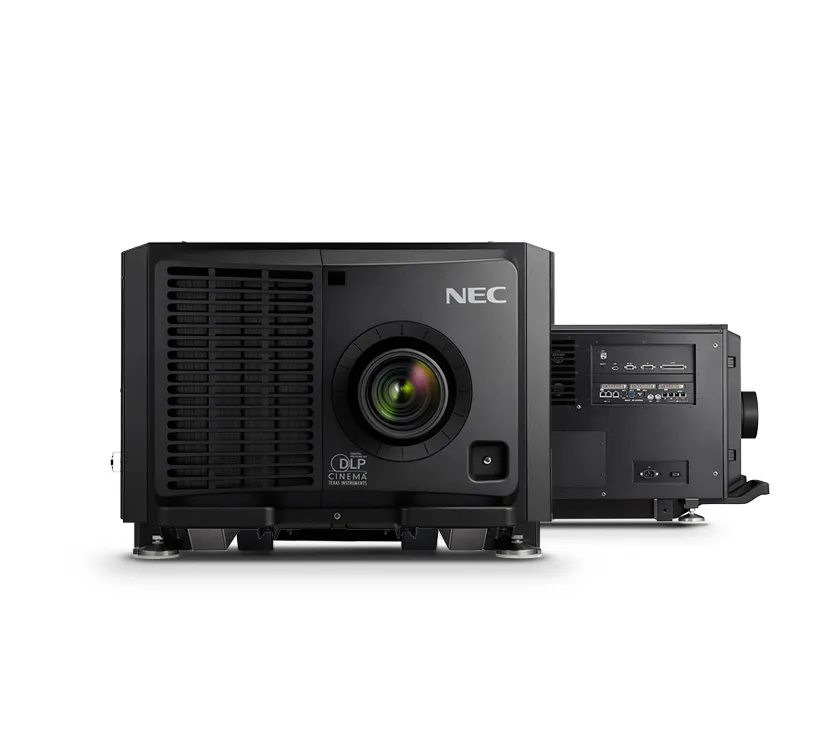

Designed for auditoriums with screens (up to 105 ft. wide), NEC's NC3541L is the latest DCI compliant RB Laser DLP cinema projector. Delivering precise 4K (4096 x 2160) resolution, 3-D capabilities and high contrast images (2000:1), this model is easy to operate, extremely user-friendly and requires minimal maintenance.

  • 3D content utilizes the projector's full 4K resolution and triple flash technology for smooth motion
  • Memory functions for lens position and light output simplify frequent operation
  • Lamp free projector uses an RB laser module
  • Direct selection buttons for eight stored projector configurations
  • Projector can be controlled from an optional touchscreen
  • Auto brightness control maintains constant brightness by adjusting the laser power as it ages
Technologies expand_more

  • 5 Bayonet-Style Lenses
    Allows for quick and easy lens exchange. Optional lenses enable the user to determine the appropriate lens to cover projection distances between 2.6 and 283 feet.
  • Custom DMD shielding
    Protects the projector from dust/oil contamination and provides optimal picture quality.

Features

US: UL60950-1 (2nd)/ FCC Part15 Class A (Marking: UL) / Canada: CSA60950-1 / ICES-003 Class A (Marking: CAN ICES-38(A)/NMB-38(A)) / Latin America: EN60950-1/EN55022 Class A,EN55032 Class A,EN55024, EN61000-3-2/-3-3/-3-11/-3-12 (Marking CE) / Laser Safety US: IEC60825-1 Edition3 2014 : Class1, IEC62471 2006 : RG3, FDA(21 CFR1040.10 and 1040.11) / Laser Safety Others: IEC60825-1 Edition3 2014 : Class1, IEC62471 2006 : RG3
Registered owners receive a 2-year parts and labor warranty
*** Subject to installation conditions. Maximum screen size is under the conditions of 14-ft-L @ screen gain 1.8
***** When the AC power to the projector power supply and the lamp power supply are provided by a single cable

Optional:

  • 24,000 Lumen Laser Module (L2K-30ZM)
  • 1.13 - 1.66:1 Zoom Lens [lens shift] (NC-50LS12Z)
  • 1.30 - 1.85:1 Zoom Lens [lens shift] (NC-50LS14Z)
  • 1.45 - 2.17:1 Zoom Lens [lens shift] (NC-50LS16Z)
  • 1.63 - 2.71:1 Zoom Lens [lens shift] (NC-50LS18Z)
  • 1.95 - 3.26:1 Zoom Lens [lens shift] (NC-50LS21Z)
  • User Manual
  • Important Information
  • Service Door Key for Projector
  • Laser Administrator Key
Display
Display Technology
Aspect Ratio
Screen Resolution 4K 4096x2160
Maximum Resolution
Brightness (typical)
Brightness (maximum)
Contrast Ratio (typical)
Color Processing
Optical
Light Source Life
Lens Adjustment Functions Motorized focus, zoom, horizontal/vertical shift, light shutter (dowser) / Lens memory stores lens setting (shift/zoom/focus) / Range of shift is dependent on lens
Projection Distance
Projector Angle
Supported Screen Size (maximum)
Lens (Zoom)
Lens (Focus)
Lens Shift +/-6% Vertical, +/-2% Horizontal
Light Output (Lumens) 35,000 lumens
Supported Screen Size (maximum) 105 ft. / 32m
Mechanical
Installation Orientation
Keystone Correction
Fan Noise Less than 55dB
Signal Compatibility/Connectivity
SD/HD Video Signal Compatibility
External Control 1xRJ45 100BASE-T / 1xSERIAL RS232Ccompliant(D-SUB 9pin female) / 1xGPIO (D-sub 37pin female) / 1xGPIO (3D) (D-sub 15 pin female)
Input Terminals - External Control
Input Terminals - RGB1(digital)
Input Terminals - RGB2(digital)
Input Terminals - RGB3(digital)
Input Terminals - RGB4(digital)
Output Terminals - Audio
Output Terminals External Control
Output Terminals - Monitor Out
Power Consumption (typical)
Input Current
Power Requirements
PC Signal Compatibility
Macintosh Signal Compatibility
Input Terminals - Input HD-SDI port [BNC] x 4 / DVI port [DVI-digital] x 2 (Option)****
Synchronization Range
Horizontal (Analog/Digital)
Vertical
Physical Specifications
Dimensions (product) (WxHxD) 27.4 x 46.5 x 17.9 in. / 697 x 1180 x 455mm
Dimensions (shipping) (WxHxD)
Net Weight 372.6 lbs. / 169 kg (excluding lens)
Weight (shipping)
Environmental Conditions
Operating Temperature 50-95°F / 10-35°C
Operating Humidity 20-85% Humidity (Non-Condensing)
Operating Altitude
Storage Temperature 14-122°F / -10-50°C
Storage Humidity 10-85% Humidity (Non-Condensing)
Storage Altitude
Power Consumption (typical)
Power Supply Voltage 220 - 240V AC, 50/60Hz Single Phase
Power Requirements 220 - 240V AC, 50/60Hz Single Phase
Input Current 30A
On 4885 W
