Overview

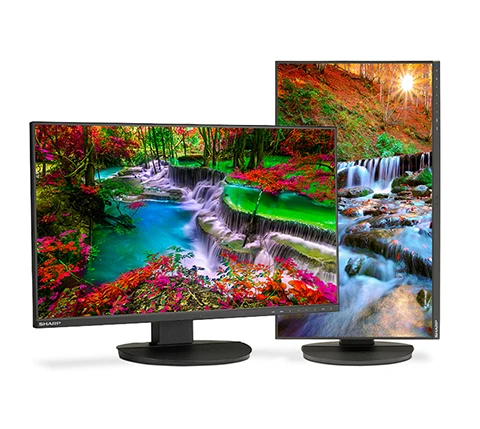

The 27" Sharp MultiSync® EA271F is a Full HD ultra-narrow bezel IPS desktop monitor ideal for demanding commercial environments. Designed with professional color and image quality standards, this 16:9 widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and ergonomic adjustability. The LED backlighting of the EA271F allows for a slimmer profile, lighter weight and increased power savings compared to previous generation models. Smart sensing technology automatically detects your work conditions to determine the proper display brightness with ambient light and human sensors. Full-featured connectivity including HDMI, DisplayPort, DVI-D, VGA and 3-port USB 3.1 hub connects users to the latest peripherals and future-proofs your investment.

  • FHD (1920x1080) Resolution
  • IPS screen technology allows for optimal viewing angle
  • Brightness 250 cd/m2
  • Full connectivity, including DisplayPort, HDMI, USB-C and VGA inputs
  • USB Hub (1 Up / 3 Down)
  • Integrated speakers (stereo 1W + 1W)
  • Touch-sensitive OSD® controls are integrated into the bezel
  • Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness, thereby conserving power
  • Height-adjust stand, pivot, tilt and swivel capabilities
  • ENERGY STAR 8.0 and TCO 9.0
  • ECO Mode™ allows you to manually adjust the display’s brightness to your liking, saving power and reducing your energy costs
  • 3 Year Warranty
Technologies expand_more

  • Carbon Footprint Meter
    Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time.

  • LED Backlight
    Provides for industry-leading low power consumption and less hazardous materials.

  • XtraView+™
    Delivers wide viewing angles of up to 178º horizontally and vertically (up to 89º up, down, left and right) with less color shift and without any glare, reflection or distortion.

  • Rapid Response™
    Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.

  • Ambient Light Sensor
    Automatically adjusts the backlight and power management depending on the ambient lighting brightness.

  • Human Sensor
    Monitors the presence of a user in front of the display and can go into power saving mode if the user leaves, saving up to 99% power.

  • Kensington Lock
    Enables a security cable to be attached to the projector.

  • Picture-by-Picture (PBP) mode
    Displays either a second video source or the same video source in a window beside the main video source.
Service Enhancements expand_more


3 Year Coverage

  • ADVEXMN-3Y-7: Advanced Exchange Over Night (Next Business Day) Service+ 3 Years
  • ONSTEMN-3Y-7: Onsite Over Night (Next Business Day) Service+ 3 Years

4 Year Coverage

  • ADVEXMN-4Y-7: Advanced Exchange Over Night (Next Business Day) Extended Warranty 4 Years
  • EXTWRMN-4Y-7: Extended Warranty 4 Years
  • ONSTEMN-4Y-7: Onsite Over Night (Next Business Day) Extended Warranty 4 Years

5 Year Coverage

  • ADVEXMN-5Y-7: Advanced Exchange Over Night (Next Business Day) Extended Warranty 5 Years
  • EXTWRMN-5Y-7: Extended Warranty 5 Years
  • ONSTEMN-5Y-7: Onsite Over Night (Next Business Day) Extended Warranty 5 Years

Note: Extended warranties are not valid in personal residences.

Features

  • Setup sheet
  • User manual
  • Power cord
  • DisplayPort cable
  • USB A-B cable
  • ControlSync cable
  • Stand

3 years
  • Tilt
  • Swivel
  • Pivot
  • Height-adjustable stand
  • Customize Setting
  • Integrated speakers
  • 3-port USB 3.1 hub
  • LED backlit
  • Auto brightness with ambient light sensor
  • Human sensor
  • ECO Mode
  • Carbon footprint meter
  • Resettable cost meter
  • Ultra-narrow bezel
  • Carrying handle
  • Rapid Response
  • Ambix
  • XtraView
  • Hot Key
  • Touch OSD controls
  • OSD Lock Out
  • Cable management
  • Dynamic Visual Mode (Standard, Text, Movie, Gaming, Photo, Dynamic)
  • NaViSet software
  • VESA mount
  • HDCP
  • DDC/CI
  • No Touch Auto Adjust
  • Plug and Play (VESA DDC2B)
  • VESA DPMS power management
  • AccuColor color control
  • Digital smoothing
  • Digital controls
  • ISO 9241-307 Class I
  • DICOM SIM
Display
Panel Technology IPS
Viewable Image Size 27 inches
Aspect Ratio 16:9
Screen Resolution FHD 1920x1080
Pixel Pitch 0.31 mm
Pixels Per Inch 82 @ native resolution
Backlight Type LED
Brightness (typical) 250 cd/m2
Contrast Ratio (typical) 1000:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR greater than 10
Response Time (typical) 6 ms
Refresh Rate 48-75Hz
Active Screen Area 23.5 x 13.2 in. / 597.9 x 336.3 mm
Displayable Colors More than 16.7 million
Color Gamut Adobe RGB Coverage/Size: 73.5% / 75.5% | NTSC Coverage/Size: 69.5% / 72.0% | sRGB Coverage/Size: 95.1% / 101.6
Supported Resolutions
Orientation
Color Temperature (Max) (°K)
Color Temperature (Min) (°K)
Gamma (Typical)
Dimming Capability
Synchronization Range
Horizontal (Digital) 31.5 - 83 kHz
Vertical 56 - 75 Hz
Signal Compatibility
Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM
Sync Compatiblity Separate Sync / Composite Sync / Sync on G
PC Signal Compatibility
Macintosh Signal Compatibility
External Control
Video
Connectivity
Data USB-A 3.1 (Downstream) x3, USB-B, USB-C (Upstream), ControlSync (In/Out)
Power Delivery
Input Terminals - RGB1 (analog) VGA 15-pin D-sub
Input Terminals - Audio 1 Stereo Mini Jack
Input Terminals - RGB1 (digital) HDMI
Input Terminals - RGB2 (digital) DisplayPort
Input Terminals - RGB3 (digital) DVI-D
Output Terminals - Audio Out Stereo Mini Jack
Output Terminals - Monitor Out
Power Consumption (typical)
On 17W
Power Savings Mode 0.27W
Power Requirements 100-240V AC, 50/60 Hz
ECO Mode Standby
Network Standby
Power Consumption (max)
Physical Specifications
Dimensions (with stand) (WxHxD) 24.0 x 14.9 - 20.8 x 9.8 in. / 610.2 x 377.3 - 527.3 x 250 mm
Dimensions (without stand) (WxHxD) 24 x 14.2 x 1.8 in. / 610.2 x 359.8 x 45.6 mm
Dimensions (shipping) (WxHxD) 28.7 x 18.7 x 8.0 in. / 730.0 x 475.0 x 204.0 mm
Net Weight (with stand) 16.8 lbs. / 7.6 kg
Net Weight (without stand) 11 lbs. / 5 kg
Weight (shipping) 23.8 lbs. / 10.8 kg
VESA Hole Configuration 100 x 100mm
Bezel Width (Left/Right, Top/Bottom)
Environmental Conditions
Operating Temperature 41-95°F / 5-35°C
Operating Humidity 20-80%
Operating Altitude 6563 ft. / 2000m
Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85%
Storage Altitude 40,000 ft. / 12,192m
Environmental Compliance
ENERGYSTAR 8
RoHS Yes
TCO 9
Connectivity - Input Terminals
Digital
Audio
External Control
Data
Connectivity - Output Terminals
Audio
Digital
External Control
