Overview

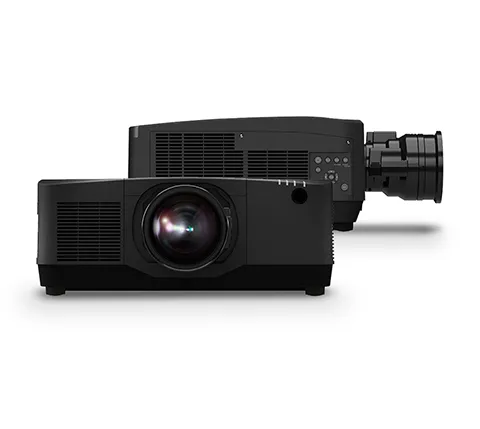

The Sharp A155U-B (black cabinet) is a 15,000 center lumen, WUXGA resolution, LCD, laser projector with advanced professional installation features for higher education and corporate users. Sharp's sealed LCD cooling system allows for a filter free design while delivering extremely quiet operation. With its multitude of digital inputs, connection to any computer or high-definition device is possible. Enjoy installation flexibility with a complete line of optional motorized lenses (powered shift, focus and zoom), roll free installation capabilities and ProAssist software support. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet and various control signals.

  • Choose from a complete line of optional lenses for maximum installation flexibility
  • Long lasting laser light source with Sharp's IP5X sealed cooling system eliminates the need for lamp replacements and filter cleaning
  • Full connectivity including HDBaseT in and out for passing video, audio and control from one projector to another
  • Compatible with Crestron, Extron, AMX and PJLink control systems along with competitor command support reduces the need for reprogramming basic controls.
Technologies expand_more

  • 4K Ready
    Display stunning 4K content using proprietary high performance video processing/scaling chip without the loss of critical details.

  • Auto Power On
    Powers on the projector when a computer signal is detected.

  • Carbon Savings Meter
    Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.

  • Cornerstone Correction
    Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.

  • Crestron Roomview
    Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.

  • Dual HDMI inputs (with HDCP)
    Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources.

  • Dust-Resistant Design
    Sealed optical block minimizes the effects of dust, helping to ensure the delivery of crisp, distortion-free images.

  • ECO Mode™
    Extends light source life, lowers audible noise and reduces total cost of ownership.

  • Edge Blending
    Blend multiple projectors together to create not standard images.

  • Geometric Correction
    Allows you to project on spheres, cylinders, corner angles and more.

  • Lens Shift
    Lens shift saves time and simplifies installations by adding flexibility to your projector placement.

  • Motorized Zoom and Focus
    Simplifies installation and operation by easily adjusting the lens through the remote control.

  • NaViSet Administrator 2™
    Control, monitor and manage your display and projector settings in an all-in-one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.

  • Picture by Picture (PBP) mode
    Displays a either second video source or the same video source in an window beside the main video source.

  • Picture-in-Picture
    Allows two sources to be displayed on the screen at one time in either a picture-in-picture or side-by-side configuration.

  • Portrait Mode
    Ability to install a projector in its side to create a 10:16 portrait image.

  • Power Management
    Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.

  • Remote Diagnostics
    Enables the user to monitor and make adjustments to the projector from a remote location.

  • Roll-Free Installation
    Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.

  • Stacking Capabilities
    Allows the projectors to boost an image’s brightness, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also supports image redundancy in mission critical applications.

  • Variable Audio Out
    Adjusts the volume of an external speaker system using the projector's remote control.

  • Wired Network Connection
    Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).

Features

Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.
  • 4K Ready
  • Motorized Lenses
  • Geometric Correction
  • Edge Blending
  • Stacking
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • NaViSet Administrator 2
  • Quick power-off
  • ProAssist Software
  • Remote control
  • Batteries
  • Power cord
  • Lens hole cap
  • User manual
  • Quick Start Guide
  • Product registration card
  • Lens anti-theft screw
  • Security Sticker

Included:

  • Remote Control (RMT-PJ40)
  • Quick Guide
  • Important Info
  • Lens Cap
  • Security Sticker
  • Lens Anti-Theft Screw

Optional:

  • Remote Control (RMT-PJ40)
  • Motorized Zoom Lens 0.53-0.65 (XP-51ZL)
  • Motorized Zoom Lens 0.65-0.87 (XP-52ZL)
  • Motorized Zoom Lens 0.86-1.25 (XP-53ZL)
  • Motorized Zoom Lens 1.24-2.01 (XP-54ZL)
  • Motorized Zoom Lens 1.98-3.95 (XP-55ZL)
  • Motorized Zoom Lens 3.95-7.51 (XP-56ZL)
  • Ceiling Mount (IPJ2000CM)
  • Input Terminal Cover (XP-13CV-B)
USA: UL (62368-1 3rd ed.) FCC Part15 Class B, Canada: CAN/CSA (62368-1:19 3rd ed.) ICES-003 Issue 7
Display
Display Technology 1.0 inch LCD w/ MLA
Aspect Ratio 16:10 (Supports 4:3, 16:9, 21:9)
Screen Resolution WUXGA 1920x1200
Maximum Resolution 4K 4096 x 2160
Brightness (typical) 14,000 Lumens
Brightness (maximum) 15,000 Center Lumens
Contrast Ratio (typical) 3,000,000:1 (with Dynamic Contrast)
Color Processing 10-bit color processing (approx. 1.07 billion colors)
Optical
Light Source Life 20,000 hours
Lens Adjustment Functions Motorized focus, zoom, horizontal/vertical shift, light shutter / Lens memory stores lens setting (shift/zoom/focus) / Range of shift is dependent on lens
Projection Distance 2.17 to 261.9 ft. / 0.67 to 79.8m
Projector Angle 3.1 to 28.2° tele / 5.7 to 31.5° wide
Supported Screen Size (maximum) 60 to 500 in./ 1.5 to 12.7m
Lens (Zoom) Motorized
Lens (Focus) Motorized
Lens Shift
Light Output (Lumens)
Supported Screen Size (maximum)
Mechanical
Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear
Keystone Correction '+/- 40° horizontal, +/-30° vertical
Fan Noise 39 dB normal / 35 dB eco
Signal Compatibility/Connectivity
SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
External Control RS-232, IR, DDC/CI
Input Terminals - External Control RS-232 (D-Sub 9pin), IR, LAN, HDBaseT, Wired Remote
Input Terminals - RGB1(digital) HDMI (V2.0) w/HDCP (V1.4/2.2)
Input Terminals - RGB2(digital) HDMI (V2.0) w/HDCP (V1.4/2.2)
Input Terminals - RGB3(digital) HDBaseT w/HDCP (V1.4/2.2)
Input Terminals - RGB4(digital) 3G SDI (SMPTE ST 424M / SMPTE 292M)
Output Terminals - Audio Stereo Mini Jack
Output Terminals External Control HDBaseT
Output Terminals - Monitor Out HDBaseT Repeater
Power Consumption (typical) 960W / 855W / 0.4W / 0.15W
Input Current 11.6A - 5.1A
Power Requirements 100-240V AC, 50/60 Hz
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA
Macintosh Signal Compatibility Yes
Input Terminals - Input
Synchronization Range
Horizontal (Analog/Digital) 15KHz, 24～153KHz
Vertical 24,25,30,48,50～85,100,120Hz
Physical Specifications
Dimensions (product) (WxHxD) 23.6 x 9.4 x 19.3 in. / 599 x 238 x 490 mm
Dimensions (shipping) (WxHxD) 29.1 x 15.0 x 24.8 in. / 735 x 382 x 629 mm
Net Weight 63.3 lbs. / 28.7 kg
Weight (shipping) 78.3 lbs. / 35.5 kg
Environmental Conditions
Operating Temperature 32-113°F / 0-45°C
Operating Humidity 20 to 85% Humidity (Non-Condensing)
Operating Altitude 0 to 3650 m (12,000 ft)
Storage Temperature 14-122°F / -10-50°C
Storage Humidity 20% - 80% (non-condensing)
Storage Altitude 0-12,000m / 0-39,370ft (above sea level)
Power Consumption (typical)
Power Supply Voltage
Power Requirements
Input Current
On
