Overview

Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp PN-M Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the PN-M series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box. On top of that, these products allow customers the modularity capabilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp PN-M series boasts 550 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.

  • 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!

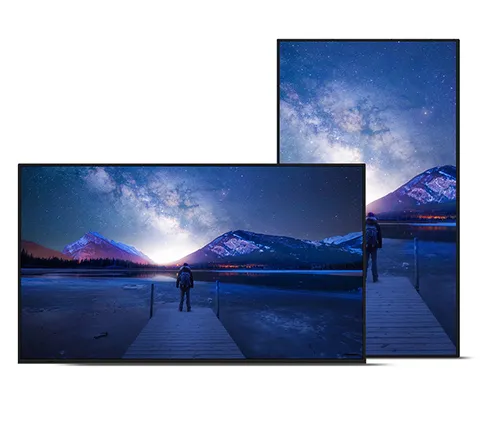

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
  • 550 cd/m2 brightness with high haze panel will capture the attention of audience in almost any situation
  • Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality allow for more streamlined operations when using as a presentation type of device
  • LAN Daisy Chain passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
  • Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections passing any digital input into the display
  • Failover Capabilities with full Input Change functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Energy Star 8.0 Certified Product
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
Technologies expand_more

  • 3D LUT
    Internal 14-bit programmable 3D lookup tables (LUTs) allow the display of 1.07 billion colors out of a palette of 4.3 trillion (with 10-bit DisplayPort input) for accurate color, smooth images and hardware calibration.

  • Accepts Intel® Smart Display Modules Large or Small
    Accepts Intel® Smart Display Modules Large or Small through clever mechanical and electrical design allowing for sleek all-in-one intelligence and interoperability in a small form factor setting.

  • Ambient Light Sensor
    Automatically adjusts the backlight and power management depending on the ambient lighting brightness.

  • Built-In Speakers
    Enhance the visual experience with superior sound

  • Dual Daisy Chain Capabilities
    These displays have the ability to support both HDMI and DisplayPort daisy chaining if necessary

  • SpectraView Engine Technology
    Proprietary integrated color management system.

  • NaViSet Administrator 2™
    Control, monitor and manage your display and projector settings in an all in one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.

  • Three HDMI inputs
    Allows for simultaneous digital connections of high-definition sources.

  • TileComp™
    Automatically eliminates geometrical distortions between displays by adjusting for the width of the monitor bezels, working in tandem with TileMatrix (some data on the screen will be lost in the area of the bezels).

  • TileMatrix™
    • Allows users to customize a video wall configuration using advanced On Screen Display controls.

  • USB-C Hub with 65W Power Delivery
    • Connect your laptop directly to the display and control two separate peripherals while also charging your laptop with 65W power provided directly from the display
Service Enhancements expand_more


3 Year Coverage

  • ADVEXMX-3Y-18: Advanced Exchange 2 Day Freight Service+
  • ONSTEMN-3Y-18: Onsite 2 Day Freight Service+

4 Year Coverage

  • ADVEXMX-4Y-18: Advanced Exchange 2 Day Freight Extended Warranty 4 Years
  • EXTWRMN-4Y-18: Extended Warranty 4 Years
  • ONSTEMN-4Y-18: Onsite 2 Day Freight Extended Warranty 4 Years​

5 Year Coverage

  • ADVEXMX-5Y-18: Advanced Exchange 2 Day Freight Extended Warranty 5 Years
  • EXTWRMN-5Y-18: Extended Warranty 5 Years
  • ONSTEMN-5Y-18: Onsite 2 Day Freight Extended Warranty 5 Years

Note: Extended warranties are not valid in personal residences.

Features

Multiple integrated temperature sensors and fans for active cooling and real time temperature measuring to ensure that the display stays cool for extended runtimes
3 years Advanced Exchange
  • AMX Support
  • Automated Email Alert Function
  • ARC Support through HDMI
  • Crestron onnected V2 Support with XiO Cloud
  • IEEE802.1x Wired Network Authentication
  • SSL/TLS (HTTPS) Display Browser Control
  • Display Wall Calibrator Compatible
  • HDR Support (PQ, HLG, HDR10)
  • Key Guide
  • NaViSet Secure
  • Signed FW upon Install
  • IP Address Filtering
  • MAC Address Filtering
  • SNMP V1/2/3
  • USB/LAN Lockout Compatibility
  • OSD Rotation for Portrait Orientation
  • NEC Firmware Update Tool Compatible
  • 65W Power Delivery via USB-C
  • PD Comms TOol Support
  • Real Time Clock
  • Local Dimming
  • TileMatrix
  • SNMP Support
  • Consumer Electronics Control (CEC)
  • Daisy Chain Capabilities
  • SpectraView Engine Technology
  • Wide Color Gamut Panel
  • Integrated Temperature Sensors and Active Cooling Fans
  • Full Change Detect Functionality
  • Programmable Gamma
  • Energy Star 8.0
  • Color Vision Emulation
  • 6-axis Color Trim
  • Uniformity Adjustment
  • Scheduler Function
  • Off Timer
  • Vacation Switch

  • 3.0m Power cord
  • 3.0m HDMI cable
  • Wireless remote control
  • Batteries
  • Setup Guide

Optional:

  • Wall Mount (WMK-3298T)
  • IR/Human Sensor Accessory (KT-RC3)
  • Table Top Stand (ST-43M)
  • Optional Active Speaker (SP-RM3a)

Display
Panel Technology IPS
Viewable Image Size 98 inches
Aspect Ratio 16:9
Screen Resolution 3840x2160
Pixel Pitch 0.562 mm
Pixels Per Inch 45 @ native resolution
Backlight Type LED Direct-lit
Brightness (typical) 550 cd/m2
Contrast Ratio (typical) 1200:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR greater than 10
Response Time (typical) 8 ms
Refresh Rate 60Hz
Active Screen Area 84.99 x 47.81 in. / 2158.85 x 1214.35mm
Displayable Colors More than 1.08 billion (10-bit dithered)
Color Gamut
Supported Resolutions DIsplayPort: V1.4 - Up to 3840 x 2160 (60Hz), HDMI: V2.0 - Up to 4096 x 2160 (60Hz)
Orientation Landscape/Portrait
Color Temperature (Max) (°K) 15000K
Color Temperature (Min) (°K) 3000K
Gamma (Typical) Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable
Dimming Capability Local Dimming Capable
Synchronization Range
Horizontal (Digital) Digital: 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort)
Vertical Digital: 23.0 - 76.0Hz
Signal Compatibility
Supported Video Standards
Sync Compatiblity
PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes
External Control LAN In/Out and RS232 In - Full external control capabilities
Video Digital TMDS / DisplayPort
Connectivity
Data
Power Delivery
Input Terminals - RGB1 (analog)
Input Terminals - Audio 1
Input Terminals - RGB1 (digital)
Input Terminals - RGB2 (digital)
Input Terminals - RGB3 (digital)
Output Terminals - Audio Out
Output Terminals - Monitor Out
Power Consumption (typical)
On 210W
Power Savings Mode 2W
Power Requirements 6.7A - 2.7A @ 100V - 240V
ECO Mode Standby Lesss than 0.5W
Network Standby 0.5W
Power Consumption (max) 350W (Max Brightness), 595W (Brightness Max, SDM Max, Volume Max, USB-C Power Activated)
Physical Specifications
Dimensions (with stand) (WxHxD)
Dimensions (without stand) (WxHxD) 86.4 x 49.2 x 3.3 in. / 2194.7 x 1250.2 x 84.3 mm
Dimensions (shipping) (WxHxD) 92.5 x 55.1 x 12.2 in. / 2350.0 x 1400.0 x 310.0mm
Net Weight (with stand)
Net Weight (without stand) 149.9 lbs. / 68 kg.
Weight (shipping) 218.3 lbs. / 99.0kg
VESA Hole Configuration 400 x 400mm (M6 x 4-hole)
Bezel Width (Left/Right, Top/Bottom) 0.63 in./0.63 in., 0.63 in./0.63 in. : 15.9 mm/15.9 mm, 15.9 mm/15.9 mm
Environmental Conditions
Operating Temperature
Operating Humidity 20% to 80%
Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140°F / -20-60°C
Storage Humidity 10-80%
Storage Altitude 40,000 ft. / 12,192m
Environmental Compliance
ENERGYSTAR Energy Star 8.0
RoHS
TCO
Connectivity - Input Terminals
Digital HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP), USB-C (DP-Alt Mode, U
Audio DisplayPort Audio, Audio via USB-C (DP-Alt), HDMI Audio x2
External Control RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
Data USB-C (Hub, 20V/3.25A), USB-A (Service, 5V/2.5A), USB-A (Downstream, 5V/0.9A), USB-C (Downstream, 5V/1.5A)
Connectivity - Output Terminals
Audio 3.5mm Mini-Jack
Digital HDMI (2.0), DisplayPort (1.4)
External Control LAN (100Mb)
